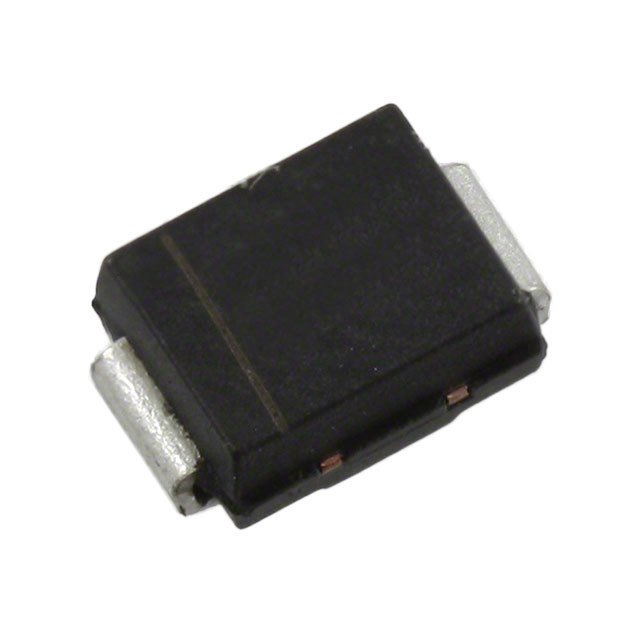

SMBJ45A - Bourns J.W. Miller
Manufacturer:
Bourns J.W. Miller
ManyChip's Part#:
MC10463536
Category:
TVS Diode
Package:
DO-214AA
Datasheet:
Datasheet 3D Model
Description:
Trans Voltage Suppressor Diode, 600W, 45V V(RWM), Unidirectional, 1Element, Silicon, DO-214AA, ROHS COMPLIANT, PLASTIC, SMB, 2Pin
Stock Locations:
Availability:
9,900 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.09

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

General Information
The markets of portable communications, computing and video equipment are challenging the semiconductor industry to develop increasingly smaller electronic components.
Bourns offers Transient Voltage Suppressor Diodes for surge and ESD protection applications, in compact chip package DO-214AA (SMB) size format. The Transient Voltage Suppressor series offers a choice of Working Peak Reverse Voltage from 5 V up to 495 V and Breakdown Voltage up to 550 V. Typical fast response times are less than 1.0 picosecond for unidirectional devices and less than 5.0 picoseconds for bidirectional devices from 0 V to Minimum Breakdown Voltage.
Bourns® Chip Diodes conform to JEDEC standards, are easy to handle with standard pick and place equipment and the ﬂat confguration minimizes roll away.
Features
■ RoHS compliant
■ Surface Mount SMB package
■ Standoff Voltage: 5 to 495 volts
■ Power Dissipation: 600 watts
Applications
■ IEC 61000-4-2 ESD (Min. Level 4)
■ IEC 61000-4-4 EFT
■ IEC 61000-4-5 Surge

Show

SMBJ45A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AA
Operating Voltage	3.5 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Power Dissipation	600 W
Clamping Voltage	72.7 V
Test Current	1 mA
Max Breakdown Voltage	57.5 V
Max Forward Surge Current (Ifsm)	100 A
Peak Pulse Power	600 W
Min Breakdown Voltage	50 V
Reverse Breakdown Voltage	50 V
Maximum Forward Voltage (Max)	3.5 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	-55℃ ~ 150℃
	Show
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2016/06/20
HTS Code	8541100080
