NCP694D33HT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC31500637
Category:
Voltage Regulator
Package:
SOT-89-5
Datasheet:
Datasheet 3D Model
Description:

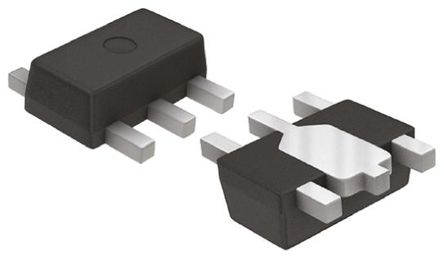

NCP694D33HT1G, LDO Voltage Regulator, 1A, 3.3V, 1.4 to 6Vin, 5Pin SOT-89
Stock Locations:
Availability:
277 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.3

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Never worry about components seeing unstable voltages again by implementing this LDO NCP694D33HT1G linear regulator manufactured by ON Semiconductor. Its typical dropout voltage at current is 0.05@300mA|0.18@1A V. This device has a maximum power dissipation of 900 mW. This voltage regulation device"s single output can produce a current up to 1(Typ) A. Using the part will provide the power your application needs by requiring a voltage only of 1.4 V and not exceeding a voltage of 6 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. A load regulation of 15mV and line regulation of 0.2%/V is necessary for providing a constant voltage level at your output. Its maximum power dissipation is 900 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its polarity is positive. The maximum dropout voltage is 0.1@300mA V. This voltage regulation device has an operating temperature range of -40 °C to 85 °C.

Show

NCP694D33HT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-89-5
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	1 A
Number of Positions	5 Position
Polarity	P-Channel
Power Dissipation	900 mW
voltage rating	180 mV
Input Voltage (Max)	6 V
Input Voltage (Min)	1.4 V
Output Current (Max)	1 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	900 mW
Input Voltage	≤6 V
	Show
Size-Length	4.6 mm
Size-Width	2.6 mm
Size-Height	1.6 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99
