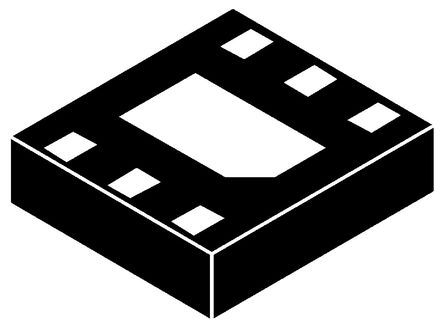

NCP705MT33TCG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC44155736
Category:
Voltage Regulator
Package:
WDFN-6
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCP705MT33TCG Fixed LDO Voltage Regulator, 2.5V to 5.5V In, 230mV Dropout, 3.3V/500mA Out, WDFN-6
Stock Locations:
Availability:
1,765 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.65

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Noise sensitive RF applications such as Power Amplifiers in satellite radios, infotainment equipment, and precision instrumentation require very clean power supplies. The NCP705 is 500 mA LDO that provides the engineer with a very stable, accurate voltage with ultra low noise and very high Power Supply Rejection
Ratio (PSRR) suitable for RF applications. The device doesn’t require any additional noise bypass capacitor to achieve ultra-low noise performance. In order to optimize performance for battery operated portable applications, the NCP705 employs dynamic Iq management for ultra-low quiescent current consumption at light-load conditions and great dynamic performance.
**Features:**
* Operating Input Voltage Range: 1.8 V to 5.5 V
* Available in Fixed Voltage Options: 0.8 to 3.5 V Contact Factory for Other Voltage Options
* Ultra-Low Quiescent Current of Typ. 13 A
* Ultra-Low Noise: 12 VRMS from 100 Hz to 100 kHz
* Very Low Dropout: 230 mV Typical at 500 mA
* ±2% Accuracy Over Load/Line/Temperature
* High PSRR: 71 dB at 1 kHz
* Internal Soft-Start to Limit the Turn-On Inrush Current
* Thermal Shutdown and Current Limit Protections
* Stable with a 1 F Ceramic Output Capacitor
* Active Output Discharge for Fast Turn-Off
* These are Pb-Free Devices
**Typical Applications:**
* PDAs, Mobile Phones, GPS, Smartphones
* Wireless Handsets, Wireless LAN, Bluetooth, Zigbee
* Portable Medical Equipment
* Other Battery Powered Applications

Show

NCP705MT33TCG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	WDFN-6
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	500 mA
Supply Current	25 μA
Number of Positions	6 Position
Polarity	P-Channel
Quiescent Current	25 µA
voltage rating	230 mV
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.5 V
Output Current (Max)	0.5 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±2 %
Input Voltage	5.5 V
	Show
Size-Length	2 mm
Size-Width	2 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
