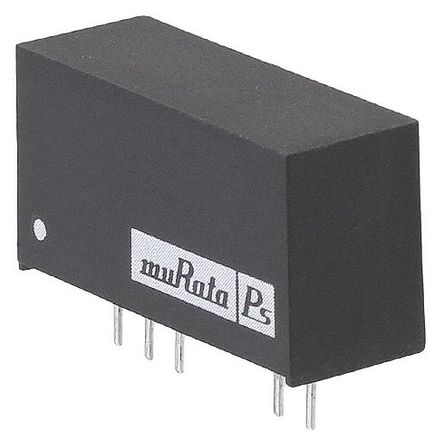

Image is for your reference only,please check specifications for details

NCS1S2405SC - muRata
Manufacturer:
muRata
ManyChip's Part#:
MC10461831
Category:
DC to DC Converter, DC/DC Converter
Package:
SIP-7
Datasheet:
Datasheet 3D Model
Description:
MURATA POWER SOLUTIONS NCS1S2405SC Isolated Board Mount DC-DC Converter, SIP, Fixed, Through Hole, 1W, 5V, 200mA
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCS1S2405SC is a 1-output board-mount isolated DC to DC Converter with wide 4:1 input voltage range. The NCS1 series 1W DC/DC converter offers a single output voltage from 24V input voltage.
1kVDC Isolation "Hipot Test"
No electrolytic capacitors
Continuous short-circuit protection
Standard pinout
-40 to +105°C Operating temperature range

Show

NCS1S2405SC Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	SIP-7
Power Rating	1 W
Number of Outputs	1 Output
Output Voltage	5 V
Output Current	0.2 A
Output Power	1 W
Isolation Voltage	1 kV
Switching Frequency	400 kHz
Input Voltage (Max)	36 V
Input Voltage (Min)	9 V
Input Voltage (DC Max)	36 V
Input Voltage (DC Min)	9 v
Output Current (Max)	200 mA
Input Power (Max)	1 W
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	9V ~ 36V
	Show
Size-Length	21.87 mm
Size-Width	8.2 mm
Size-Height	11.3 mm
Weight	3.3 g
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
