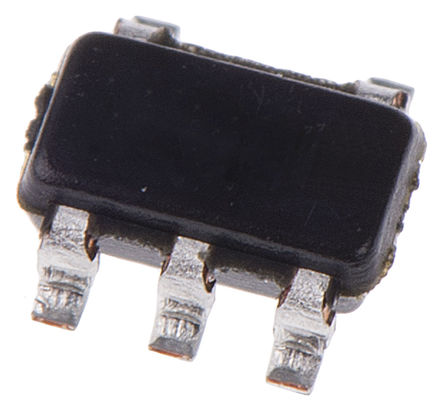

Image is for your reference only,please check specifications for details
- NCS333SN2T1G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC44878446
-
Category:Operational Amplifier, OP Amp IC
-
Package:SOT-23-5
-
Datasheet:Datasheet 3D Model
-
Description:ON SEMICONDUCTOR NCS333SN2T1G Operational Amplifier, Zero-Drift, 1 Amplifier, 350kHz, 0.15V/µs, 1.8V to 5.5V, SOT-23, 5Pins New
-
Stock Locations:
-
Availability:211 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.07
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The NCS333 is a precision op amp with very low input offset voltage (10 µV max) and near−zero drift over time and temperature. This high precision, low quiescent current amplifiers has high impedance inputs with a common−mode range 100 mV beyond the rails as well as rail−to−rail output swing within 50 mV of the rails. The NCS333 features a wide supply range from 1.8 V to 5.5 V (±0.9 V to ±2.75 V for dual supplies). The NCS333 family exhibits outstanding CMRR without the crossover associated with traditional complementary input stages. This design results in superior performance for driving analog−to−digital converters (ADCs) without degradation of differential linearity. The NCS333 is available in compact SC70−5 and SOT23−5 packages and are specified for operation from −40°C to +105°C. The NCV333 is the automotive qualified version available in SOT23−5 and specified for operation from −40°C to +125°C.
- Features | | Benefits
- ---|---|---
- | | | | |
- Low Offset Voltage: 10 µV max
- | |
- Better output accuracy
- Zero Drift: 0.07 µV/°C max
- | |
- Better output accuracy
- Low Noise: 1.1 µVpp, 0.1 Hz to 10 Hz
- | |
- Better output accuracy
- Quiescent Current: 17 µA Typical at 3.3 V Supply
- | |
- Low power consumption suited for battery powered devices
- Supply Voltage: 1.8 V to 5.5 V
- | |
- Wide supply voltage compatible with a a variety of applications
- Rail−to−Rail Input and Output Voltage
- | |
- Wide input and output signal range
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- | |
- Meets automotive standards
NCS333SN2T1G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | SOT-23-5 |
| Supply Current | 17 µA |
| Number of Circuits | 1 Circuit |
| Number of Positions | 5 Position |
| Bandwidth | 350 kHz |
| Slew Rate | 150 mV/μs |
| Gain Bandwidth Product | 350 kHz |
| Input Offset Voltage | 10 µV |
| Input Bias Current | 60 pA |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 1.8 V |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Minimum CMRR Range | 105dB ~ 115dB |
| Supply Voltage | 1.8V ~ 5.5V |
| Supply Voltage (Max) | 5.5V ~ 6V |
| Input Voltage | 1.8V ~ 5.5V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 1.5 mm |
| Size-Height | 1 mm |
| Operating Temperature | -40℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/12/17 |
