NCT75DR2G ON Semiconductor - Temperature Sensor

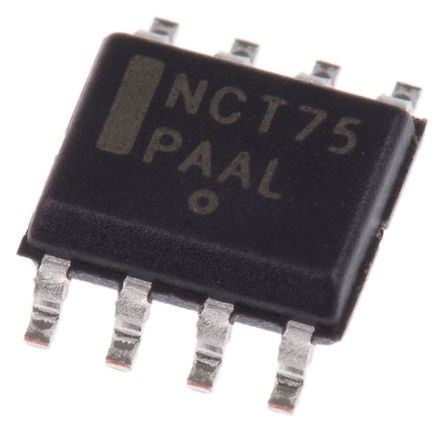

Image is for your reference only,please check specifications for details

NCT75DR2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC14258759
Category:
Temperature Sensor
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCT75DR2G Микросхема датчика температуры, открытый сток, ± 3℃, от -55℃ до +125℃, SOIC, 8 выводов
Stock Locations:
Availability:
2,750 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.35

Updated at 04/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Датчики температуры NCT75
Серия датчиков температуры NCT75 преобразует измерения температуры в цифровую форму с помощью встроенного АЦП. Области применения включают управление термостатами, тепловое управление и защиту, управление батареями, офисную электронику и электронное испытательное оборудование.

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	3.00V (min)
Halogen Free Status	Halogen Free
Supply Current	0.8 mA
Number of Positions	8 Position
Number of Bits	12 Bit
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Accuracy	±1 ℃
Supply Voltage	3V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	3 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
