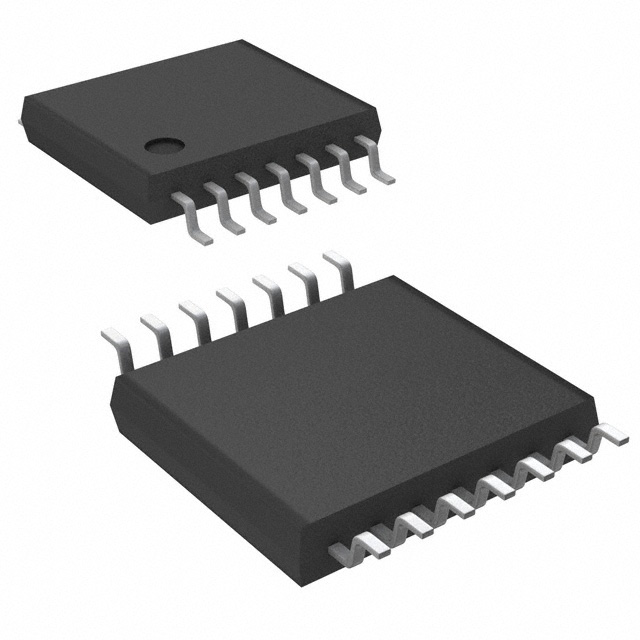

Image is for your reference only,please check specifications for details
- NCV3011DTBR2G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC50805623
-
Category:DC to DC Converter
-
Package:TSSOP-14
-
Datasheet:Datasheet 3D Model
-
Description:Voltage Mode PWM Controller 0.8V 400kHz Automotive 14Pin TSSOP T/R
-
Stock Locations:
-
Availability:266 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.69
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The best way to encode pulsating signals is by using the NCV3011DTBR2G voltage mode PWM controller from ON Semiconductor. With an output that has a voltage of 0.8(Min) V, this is power management at its best. It has single PWM output. It has a switching frequency of 400 kHz. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device has a minimum operating supply voltage of 4.5 V and a maximum of 28 V.
NCV3011DTBR2G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 14 Pin |
| Case/Package | TSSOP-14 |
| Frequency | 400 kHz |
| Halogen Free Status | Halogen Free |
| Number of Outputs | 1 Output |
| Output Voltage | 3.3 V |
| Output Current | 8 A |
| Number of Positions | 14 Position |
| Switching Frequency | 400 kHz |
| Topology | Step-Down |
| Maximum Duty Cycle | 0.83 |
| Operating Temperature (Max) | 140 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 28 V |
| Supply Voltage (Min) | 4.7 V |
| Input Voltage | 4.7V ~ 28V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
