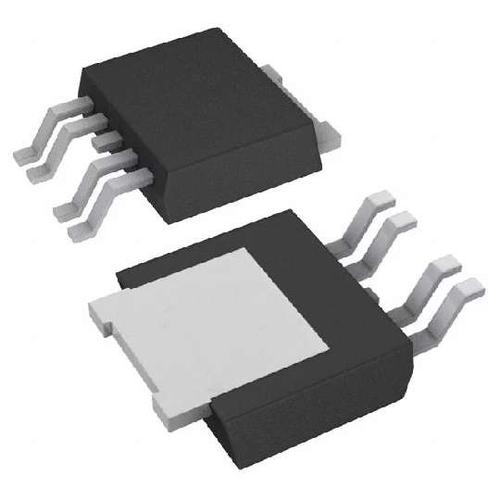

Image is for your reference only,please check specifications for details
- NCV4276BDT50RKG - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC55153266
-
Category:Voltage Regulator
-
Package:TO-252-5
-
Datasheet:Datasheet 3D Model
-
Description:Linear Voltage Regulator, LDO, 400mA 5V, 2%, DPAK 5 Center Lead Crop, 2500-REEL
-
Stock Locations:
-
Availability:10,635 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.26
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Having trouble maintaining a steady voltage? This LDO NCV4276BDT50RKG linear regulator from ON Semiconductor will give you control over the voltage levels of your circuit. Its typical dropout voltage at current is 0.25@250mA V. It has an overall accuracy of ±2 %. This voltage regulation device"s single output can produce a current up to 0.4 A. Using the part will provide the power your application needs by requiring a voltage only of 4.5 V and not exceeding a voltage of 40 V. With a fixed output that has a voltage of 5 V, this is power management at its best. At a load regulation of 20mV and line regulation of 15mV a constant current can be produced at the output of your circuit. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This voltage regulation device has an operating temperature range of -40 °C to 150 °C. Its polarity is positive. The maximum dropout voltage is 0.5@250mA V.
NCV4276BDT50RKG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | TO-252-5 |
| Number of Outputs | 1 Output |
| Output Voltage | 5 V |
| Output Current | 400 mA |
| Supply Current | 200µA ~ 35mA |
| Number of Positions | 5 Position |
| Quiescent Current | 0.13 mA |
| voltage rating | 0.25V @250mA |
| Input Voltage (Max) | 45 V |
| Input Voltage (Min) | 4.5 V |
| Output Voltage (Min) | 5 V |
| Output Current (Max) | 0.4 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±2 % |
| Input Voltage | ≤40 V |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
