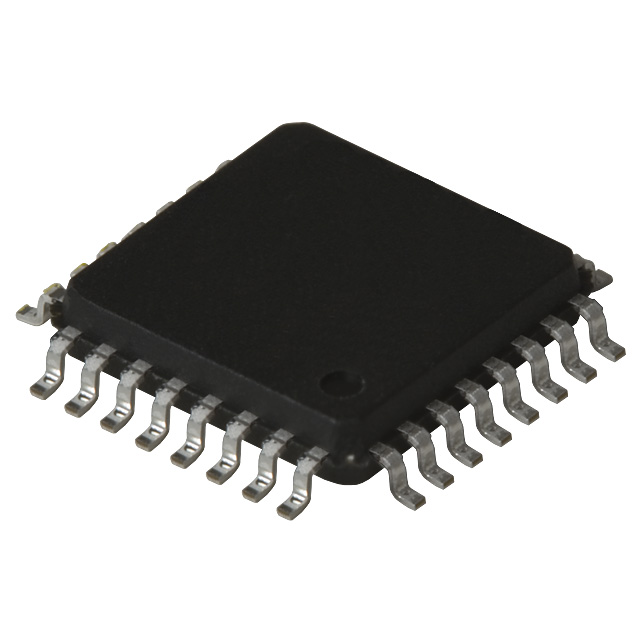

Image is for your reference only,please check specifications for details
- NCV7517BFTR2G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC7636075
-
Category:FET Driver
-
Package:LQFP-32
-
Datasheet:Datasheet 3D Model
-
Description:MOSFET DRVR 0.026A 6Out Lo Side Non-Inv 32Pin LQFP T/R
-
Stock Locations:
-
Availability:296 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.59
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Drive a high voltage and high current line with a transistor a certain way with this NCV7517BFTR2G power driver manufactured by ON Semiconductor. This device has a maximum propagation delay time of 1000 ns. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device has a minimum operating supply voltage of 4.75 V and a maximum of 5.25 V. This gate driver has an operating temperature range of -40 °C to 125 °C.
NCV7517BFTR2G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 32 Pin |
| Case/Package | LQFP-32 |
| Halogen Free Status | Halogen Free |
| Number of Outputs | 6 Output |
| Output Current (Max) | 0.026 A |
| Fall Time (Max) | 277 ns |
| Fall Time (Max) | 277 ns |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 4.75V ~ 5.25V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
