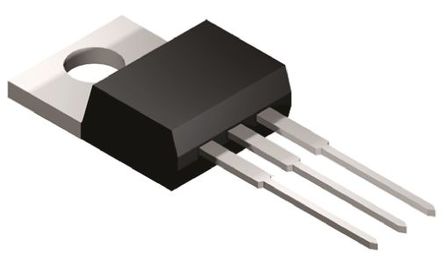

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The NDFPD1N150CG is a 1500V N-channel enhancement-mode Power MOSFET with 100R ON-resistance RDS (ON).
- 10V Drive
- 150°C Channel temperature
NDFPD1N150CG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 100 Ω |
| Polarity | N-Channel |
| Power Dissipation | 20 W |
| Input Capacitance | 80 pF |
| Drain to Source Voltage (Vds) | 1.5 kV |
| Continuous Drain Current (Ids) | 0.1A |
| Rise Time | 13 ns |
| Input Capacitance (Ciss) | 80pF @30V(Vds) |
| Fall Time | 280 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 2W (Ta), 20W (Tc) |
| Show | |
| Size-Length | 28.85 mm |
| Size-Width | 10.16 mm |
| Size-Height | 4.7 mm |
| Operating Temperature | 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
