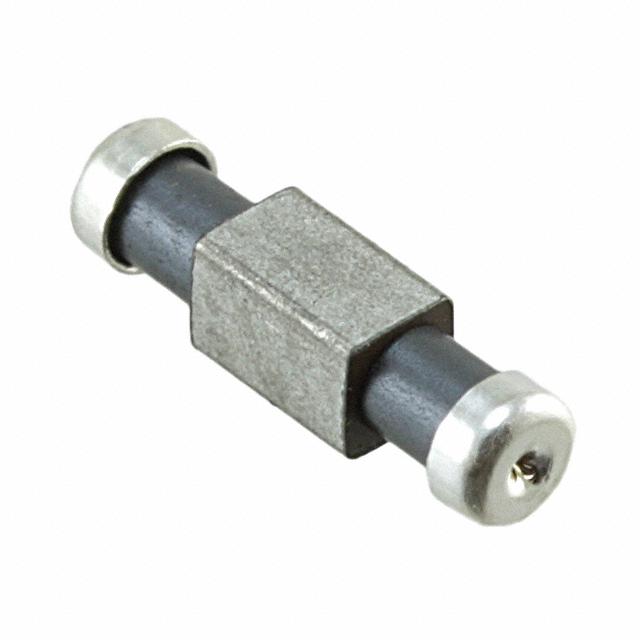

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NFE61HT330U2A9L is a Power Line Filter offers large rated current of 2A and low voltage drop due to small DC resistance are suitable for DC power line use. The device has feed-through capacitor realizes excellent high frequency characteristics and suitable for use in general applications. The structure incorporates built-in ferrite beads which minimize resonance with surrounding circuits.
REACH compliant
1000MR Minimum insulation resistance
Feed through chip EMI filters
Consists of a feed-through capacitor and ferrite beads
-40 to 85°C Operating temperature range

Show

NFE61HT330U2A9L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	2706 (6816 Metric), 3 PC Pad
Voltage Rating (DC)	100 V
Current Rating	2 A
Insulation Resistance	1000 MΩ
Capacitance	33 pF
Number of Channels	1 Channel
Shielding	No
Current Rating (Max)	2 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating (Max)	100 VDC
Voltage Rating	100 V
	Show
Size-Length	6.8 mm
Size-Width	1.6 mm
Size-Height	1.6 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
