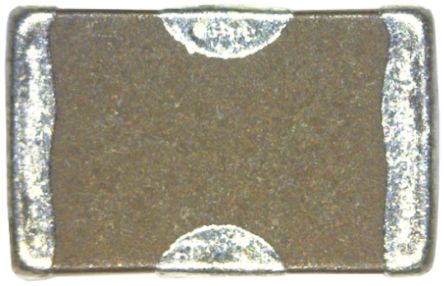

NFL21SP106X1C3D - muRata
Manufacturer:
muRata
ManyChip's Part#:
MC1634017
Category:
RFI Shielding
Package:
0805
Datasheet:
Datasheet 3D Model
Description:
LC (Pi) EMI Filter 3rd Order Low Pass 1Channel L = 680nH, C = 670pF 100mA 0805 (2012 Metric), 3 PC Pad
Stock Locations:
Availability:
3,524 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.17

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NFL21SP106X1C3D is a Power Line Filter Suppresses noise with little attenuation of the signal itself due to its steep filtering characteristics. The high performance EMI suppression filter used for high speed signal lines by using Murata"s processing technology. It is suitable for use in suppression of high magnitude radiated noise generated by high speed digital circuits such as clock and RGB.
REACH compliant
1000MR Minimum insulation resistance
LC combined filters (Multilayer type)
-55 to 125°C Operating temperature range

Show

NFL21SP106X1C3D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package (SI)	2012
Case/Package	0805
Voltage Rating (DC)	16.0 V
Current Rating	100 mA
Insulation Resistance	≥1000 MΩ
Capacitance	670 pF
Capacitance Tolerance	±20 %
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Inductance	680 nH
Current Rating (Max)	0.1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating (Max)	16 VDC
Voltage Rating	16 V
	Show
Size-Length	2 mm
Size-Width	1.25 mm
Size-Height	0.85 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
