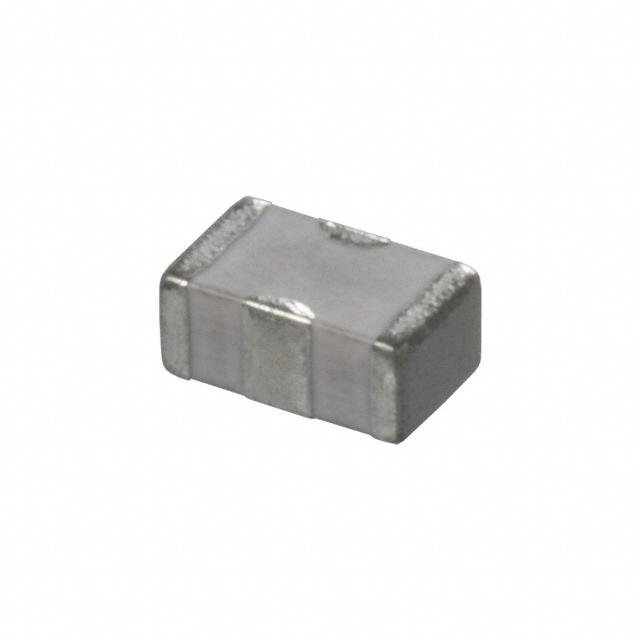

Image is for your reference only,please check specifications for details
- NFL21SP507X1C3D - muRata
-
Manufacturer:muRata
-
ManyChip's Part#:MC18149128
-
Category:RFI Shielding
-
Package:0805
-
Datasheet:Datasheet 3D Model
-
Description:LC (Pi) EMI Filter 3rd Order Low Pass 1Channel L = 31nH, C = 12pF 300mA 0805 (2012 Metric), 3 PC Pad
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel L = 31nH, C = 12pF 300mA 0805 (2012 Metric), 3 PC Pad
NFL21SP507X1C3D Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package (SI) | 2012 |
| Case/Package | 0805 |
| Capacitance | 12 pF |
| Number of Channels | 1 Channel |
| Inductance | 31 nH |
| Shielding | No |
| Current Rating (Max) | 0.3 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Voltage Rating (Max) | 16 VDC |
| Voltage Rating | 16 V |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 1.25 mm |
| Size-Height | 0.85 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
