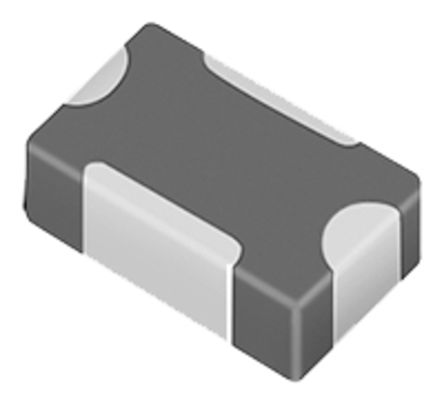

Image is for your reference only,please check specifications for details

NFM21PS106B0J3D - muRata
Manufacturer:
muRata
ManyChip's Part#:
MC2975593
Category:
RFI Shielding
Package:
0805
Datasheet:
Datasheet 3D Model
Description:
10µF Feed Through Capacitor 6.3V 4A 10mOhm 0805 (2012 Metric), 3 PC Pad
Stock Locations:
Availability:
10,450 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.17

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NFM21PS106B0J3D is a CHIP EMIFIL® Power Line Filter designed for noise suppression. Its inner structure is like a feed-through capacitor, makes its ground impedance quite low. The 3-terminal capacitor has a good noise suppression effect at a high frequency range up to several hundred MHz. It is suitable for use in noise suppression in low speed signal lines and general electronic equipment.
REACH compliant
Low ESL
Standard of 3-terminal capacitor
10mR Maximum DC resistance
50MR Minimum insulation resistance
-40 to 85°C Operating temperature range
High Insertion Loss
The excessive heat by other products may cause deterioration of insulation resistance and excessive heat at this product, resulting in a fire.

Show

NFM21PS106B0J3D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	0805
Voltage Rating (DC)	6.30 V
Current Rating	4 A
Insulation Resistance	50 MΩ
Capacitance	10 µF
Capacitance Tolerance	±20 %
Current Rating (Max)	4 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (Max)	6.3 VDC
Voltage Rating	6.3 V
Resistance (DC Max)	10 mΩ
	Show
Size-Length	2 mm
Size-Width	1.25 mm
Size-Height	0.85 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
