Description

Power MOSFET
9.0 A, 52 V, N−Channel, Logic Level, Clamped MOSFET w/ESD Protection in a DPAK Package
Features
•Diode Clamp Between Gate and Source
•ESD Protection − HBM 5000 V
•Active Over−Voltage Gate to Drain Clamp
•Scalable to Lower or Higher RDS(on)
•Internal Series Gate Resistance
•Pb−Free Packages are Available
Applications
•Automotive and Industrial Markets: Solenoid Drivers, Lamp Drivers, Small Motor Drivers
Benefits
•High Energy Capability for Inductive Loads
•Low Switching Noise Generation

Show

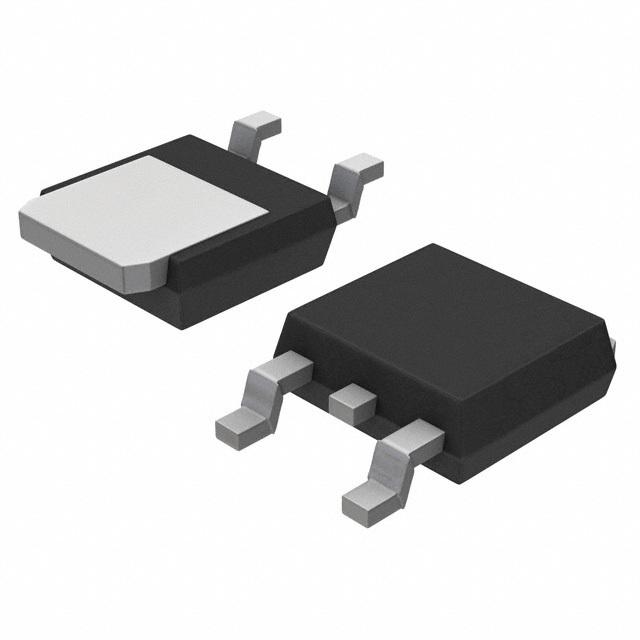

NID9N05CL Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	TO-252-3
Voltage Rating (DC)	52.0 V
Current Rating	8.00 A
Number of Outputs	1 Output
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	90 mΩ
Polarity	N-Channel
Power Dissipation	1.74 W
Input Capacitance	250 pF
Gate Charge	7.00 nC
Drain to Source Voltage (Vds)	59 V
Breakdown Voltage (Drain to Source)	52 V
Breakdown Voltage (Gate to Source)	±15.0 V
Continuous Drain Current (Ids)	9.00 A
Rise Time	500 ns
Output Current (Max)	9 A
Fall Time	1800 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	55 ℃
	Show
Size-Length	6.73 mm
Size-Width	6.22 mm
Size-Height	2.38 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
