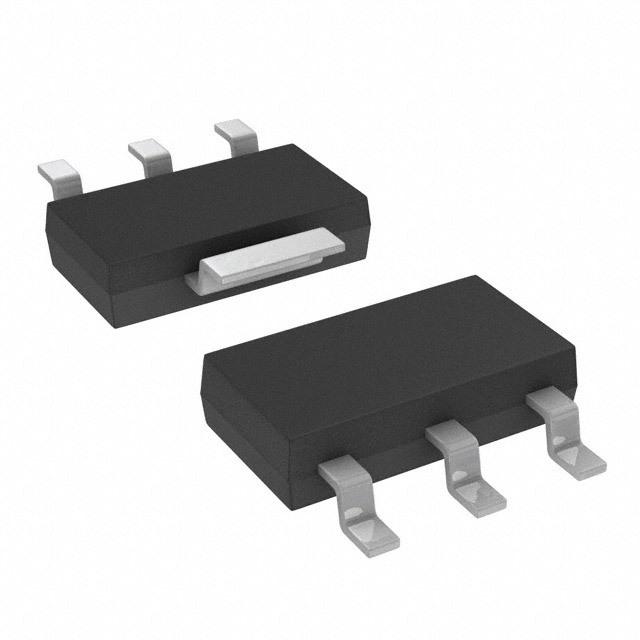

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

NIF5003NT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-261-4
Voltage Rating (DC)	42.0 V
Current Rating	2.00 A
Number of Outputs	1 Output
Drain to Source Resistance (on) (Rds)	0.053 Ω
Polarity	N-Channel
Power Dissipation	1.9 W
Threshold Voltage	1.7 V
Drain to Source Voltage (Vds)	42 V
Breakdown Voltage (Drain to Source)	42.0 V
Breakdown Voltage (Gate to Source)	±14.0 V
Continuous Drain Current (Ids)	14.0 A
Output Current (Max)	14 A
Operating Temperature (Max)	150 ℃
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99
