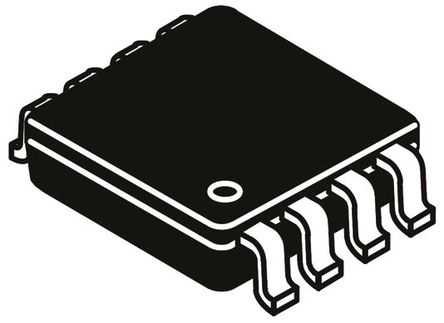

NL17SZ74USG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC104800
Category:
Flip Flop IC
Package:
US-8
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NL17SZ74USG Flip-Flop, Complementary Output, Positive Edge, D, 2.6ns, 250MHz, 32mA, US8, 8Pins
Stock Locations:
Availability:
157 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.22

Updated at 22/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NL17SZ74USG is a MiniGate™ high-performance, full function Edge triggered D Flip Flop, with all the features of a standard logic device such as the 74LCX74.
tPD 2.6ns (typical) at VCC = 5V Extremely High Speed
Designed for 1.65 to 5.5V VCC Operation
5V Tolerant Inputs, Interface Capability with 5V TTL Logic
LVTTL Compatible
LVCMOS Compatible
24mA Balanced Output Sink and Source Capability
Near zero static supply current in all three logic states (10µA) reduces system power requirements
Replacement for NC7SZ74
2000V Human Body Model, 200V Machine Model High ESD Ratings
FET = 64 Chip Complexity
Stresses exceeding those listed in the Maximum Ratings table may damage the device, if any of these limits are exceeded.

Show

NL17SZ74USG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	US-8
Frequency	250 MHz
Supply Voltage (DC)	5.00 V, 5.50 V (max)
Operating Voltage	1.5V ~ 5.5V
Current Rating	24 mA
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Current	32 mA
Supply Current	10 μA
Number of Circuits	1 Circuit
Number of Positions	8 Position
Clock Speed	200 MHz
Number of Bits	1 Bit
Polarity	Non-Inverting, Inverting
Number of Gates	1 Gate
Input Capacitance	7 pF
Number of Inputs	1 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Supply Voltage	1.65V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.65 V
	Show
Size-Length	2.1 mm
Size-Width	2.4 mm
Size-Height	0.8 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
