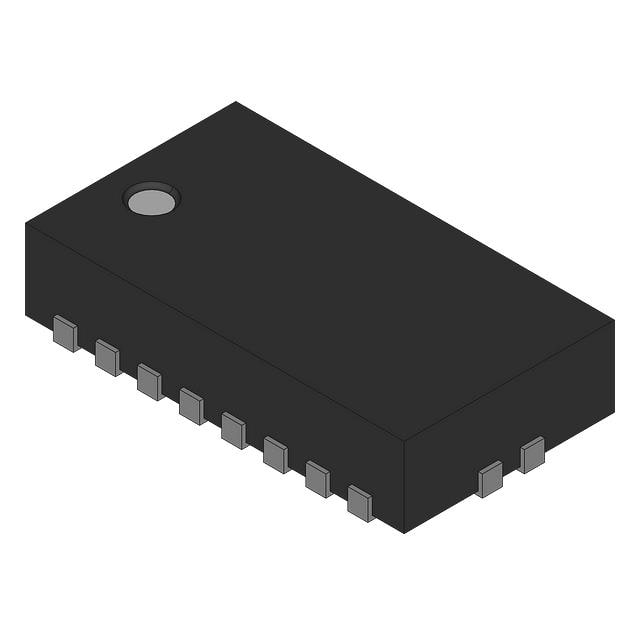

Image is for your reference only,please check specifications for details
- TPS74401RGRR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC14395508
-
Package:VQFN
-
Datasheet:Datasheet 3D Model
-
Description:Single-Output LDO, 3A, Adj (0.8V to 3.3V), Fast Transient Response, Programmable Soft Start 20-VQFN -40℃ to 125℃
-
Stock Locations:
-
Availability:1,410 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.34
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS74401 low-dropout (LDO) linear regulators provide an easy-to-use robust power-management solution for a wide variety of applications. The user-programmable soft-start minimizes stress on the input power source by reducing capacitive inrush current on start-up. The soft-start is monotonic and well-suited for powering many different types of processors and application-specific integrated circuits (ASICs). The enable input and power-good output allow easy sequencing with external regulators. This complete flexibility lets the user configure a solution that meets the sequencing requirements of field-programmable gate arrays (FPGAs), digital signal processors (DSPs), and other applications with specific start-up requirements.
- A precision reference and error amplifier deliver 1% accuracy over load, line, temperature, and process. The TPS74401 family of LDOs is stable without an output capacitor or with ceramic output capacitors. The device family is fully specified from TJ = –40°C to 125°C. The TPS74401 is offered in two 20-pin small VQFN packages (a 5-mm × 5-mm RGW and a 3.5-mm × 3.5-mm RGR package), yielding a highly compact total solution size. For applications that require additional power dissipation, the DDPAK (KTW) package is also available.
TPS74401RGRR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 20 Pin |
| Case/Package | VQFN |
| Number of Outputs | 1 Output |
| Output Voltage | 0.796V ~ 3.6V |
| Output Current | 3000 mA |
| Power Dissipation | 2.74 W |
| voltage rating | 0.115V @3A |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 0.8 V |
| Output Current (Max) | 3 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 2740 mW |
| Accuracy | ±1 % |
| Input Voltage | 5.5 V |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
