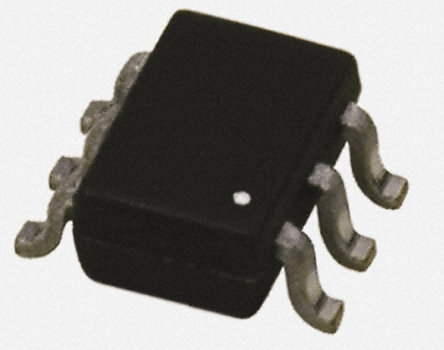

Image is for your reference only,please check specifications for details

NLAS4157DFT2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC1424696
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
SC-70-6
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NLAS4157DFT2G Analogue Switch, SPDT, 1Channels, 4Ω, 1.65V to 5.5V, SOT-363, 6Pins
Stock Locations:
Availability:
1,440 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.29

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Ultra-Small Dual Single Pole, Single Throw Analog Switch with Over Voltage Tolerance The NLAS4157 is a low RON SPDT analog switch. This device is designed for low operating voltage, high current switching of speaker output for cell phone applications. It can switch a balanced stereo output. The NLAS4157 can handle a balanced microphone/speaker/ringtone generator in a monophone mode. The device contains a break−before−make (BBM) feature

Show

NLAS4157DFT2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SC-70-6
Halogen Free Status	Halogen Free
Number of Outputs	2 Output
Contacts Type	SPDT
Supply Current	0.5 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	6 Position
Number of Bits	1 Bit
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	40 MHz
Supply Voltage	1.65V ~ 5.5V
	Show
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
