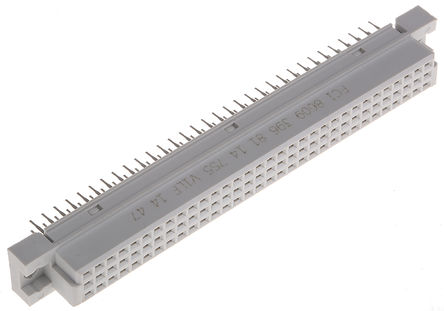

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The 86093968114755V1LF is a 96-way 3-row Class-2 Socket with grey polyester thermoplastic insulator, female phosphor bronze contacts, 2.54mm pitch. The housing will withstand exposure to 260°C peak temperature for 3.5-second in a wave solder application with a 1.6mm minimum thick circuit board.
- UL94V-0 Flammability rating
- -55 to +125°C Operating temperature range
86093968114755V1LF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Pin Pitch | 2.54 mm |
| Number of Contacts | 96 Contact |
| Gender | Female |
| Contact Plating | Gold |
| Voltage Rating (AC) | 330 V |
| Current Rating | 1.5 A |
| Insulation Resistance | 1000000 MΩ |
| Number of Rows | 3 Row |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 96 Position |
| Contact Resistance | 15.0 mΩ |
| Number of Mating Cycles | 400 Cycle |
| Current Rating (Max) | 2A/触头 |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Voltage Rating (Max) | 1000 VAC |
| Voltage Rating | 1 kV |
| Maximum Contact Resistance (Max) | 20 mΩ |
| Show | |
| Size-Length | 95 mm |
| Size-Width | 10.6 mm |
| Size-Height | 11.6 mm |
| Housing Color | Gray |
| Color | Light Gray |
| Contact Material | Copper Alloy |
| Material | Polyester |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
