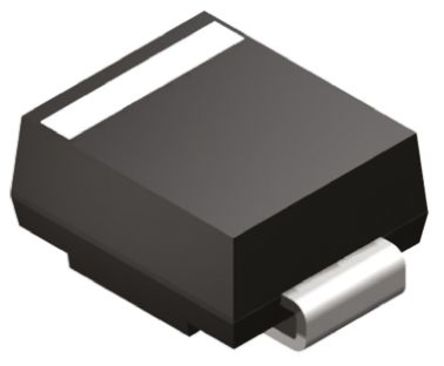

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**Schottky Barrier Diodes, 3A to 9A, ON Semiconductor**
The ON Semiconductor range of Schottky diodes can be used in fast switching applications.

Show

NRVBS360BT3G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SMB
Number of Positions	2 Position
Forward Voltage	630mV @3A
Forward Current	4 A
Max Forward Surge Current (Ifsm)	125 A
Maximum Forward Voltage (Max)	740 mV
Forward Current (Max)	4 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	4.6 mm
Size-Width	3.95 mm
Size-Height	2.09 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status
HK STC License	NLR
