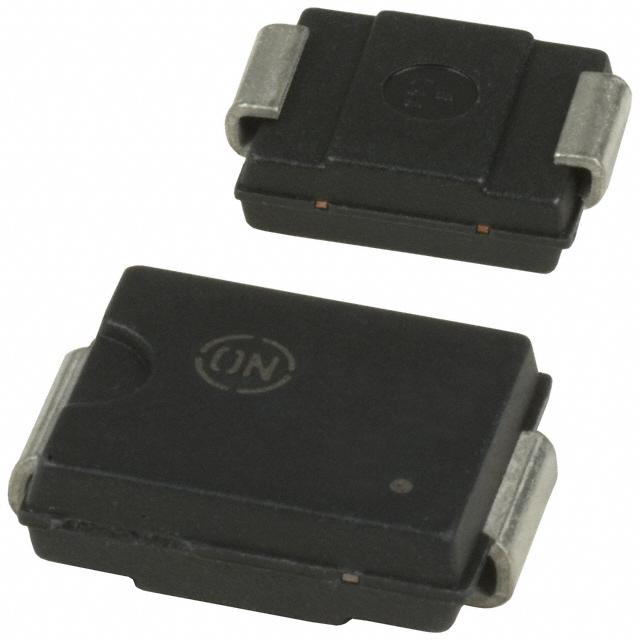

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Diode Schottky 40V 5A Surface Mount SMC
NRVBS540T3G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | SMC |
| Halogen Free Status | Halogen Free |
| Number of Positions | 2 Position |
| Forward Voltage | 500mV @5A |
| Forward Current | 5 A |
| Max Forward Surge Current (Ifsm) | 190 A |
| Maximum Forward Voltage (Max) | 500 mV |
| Forward Current (Max) | 5000 mA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Show | |
| Material | Silicon |
| Operating Temperature | -65℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
