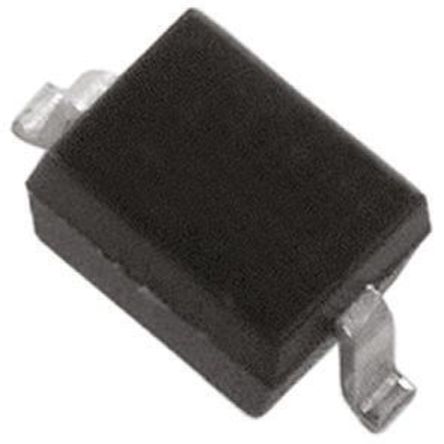

Image is for your reference only,please check specifications for details

NSR1020MW2T1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC448154
Category:
Schottky Diode
Package:
SOD-323
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NSR1020MW2T1G Small Signal Schottky Diode, Single, 20V, 1A, 440mV, 5A, 125℃
Stock Locations:
Availability:
4,560 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.08

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NSR1020MW2T1G is a Schottky Barrier Diode designed in SOD-323 package offers extremely low Vf performance. The low forward voltage makes them capable of handling high current in a very small package. The resulting device is ideally suited for application as a blocking diode in charging applications or as part of discrete buck converter or discrete boost converter. As part of a buck conversion circuit, a boost conversion circuit or a charging circuit the low Vf drop of the Schottky improves the efficiency of the overall device by consuming less power in the forward mode.
0.24V at IF = 10mADC Low forward voltage (typ.)
High current capability
Class 3B human body model & Class C machine model ESD rating
AEC Qualified and PPAP capable
Pb-free, halogen free/BFR free

Show

NSR1020MW2T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-323
Number of Positions	2 Position
Forward Voltage	540mV @1A
Power Dissipation	200 mW
Forward Current	1 A
Max Forward Surge Current (Ifsm)	5 A
Maximum Forward Voltage (Max)	440 mV
Forward Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	125℃ (Max)
Power Dissipation (Max)	200 mW
	Show
Size-Length	1.8 mm
Size-Width	1.35 mm
Size-Height	1 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
