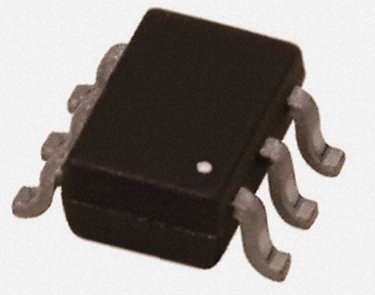

Image is for your reference only,please check specifications for details

NTGD4167CT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC8672000
Category:
MOSFET, MOSFET Transistor
Package:
TSOT-23-6
Datasheet:
Datasheet 3D Model
Description:
Small Signal MOSFET 30V 2.6A 90mOhm Complementary TSOP-6, TSOP-6, 3000-REEL
Stock Locations:
Availability:
268 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.14

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

NTGD4167CT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOT-23-6
Number of Channels	2 Channel
Number of Positions	6 Position
Drain to Source Resistance (on) (Rds)	0.052 Ω
Polarity	N-Channel, P-Channel
Power Dissipation	900 mW
Threshold Voltage	900 mV
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	2.60 A
Input Capacitance (Ciss)	295pF @15V(Vds)
Input Power (Max)	900 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1.1 W
	Show
Size-Length	3.1 mm
Size-Width	1.7 mm
Size-Height	1 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
