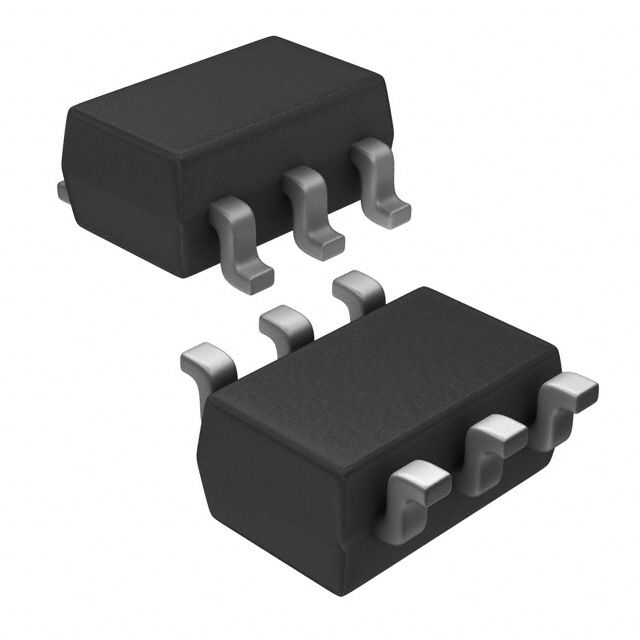

Image is for your reference only,please check specifications for details

Updated at 11/08/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Силовой MOSFET Особенности • Сверхнизкое сопротивление RDS(вкл) • Повышенная эффективность для увеличения срока службы батареи • Управление логическим уровнем • Диод с высокой скоростью и мягким восстановлением • Указана энергия лавинного пробоя • IDSS указан при повышенной температуре Применения • Управление питанием в портативных и батарейных устройствах, например: сотовых и беспроводных телефонах, картах PCMCIA • Применения в литий-ионных батареях • Ноутбуки

Show

NTGS3446T1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SOT-23-6
Voltage Rating (DC)	20.0 V
Current Rating	5.10 A
Drain to Source Resistance (on) (Rds)	36.0 mΩ
Polarity	N-Channel
Power Dissipation	500 mW
Drain to Source Voltage (Vds)	20 V
Breakdown Voltage (Drain to Source)	20.0 V
Breakdown Voltage (Gate to Source)	±12.0 V
Continuous Drain Current (Ids)	2.50 A
Rise Time	12 ns
Input Capacitance (Ciss)	750pF @10V(Vds)
Fall Time	12 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	500mW (Ta)
	Show
Size-Length	3 mm
Size-Width	1.5 mm
Size-Height	0.94 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
