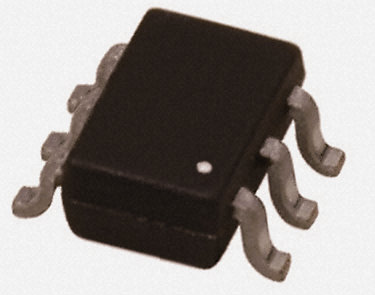

Image is for your reference only,please check specifications for details

NTGS3446T1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC16019946
Category:
MOSFET, MOSFET Transistor
Package:
SOT-23-6
Datasheet:
Datasheet 3D Model
Description:
Power MOSFET 20V 5.1A 45mOhm Single N-Channel TSOP6, TSOP-6, 3000-REEL
Stock Locations:
Availability:
1,645 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.61

Updated at 25/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

NTGS3446T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-23-6
Voltage Rating (DC)	20.0 V
Current Rating	5.10 A
Number of Positions	6 Position
Drain to Source Resistance (on) (Rds)	0.045 Ω
Polarity	N-Channel
Power Dissipation	2 W
Threshold Voltage	850 mV
Input Capacitance	510pF @10V
Gate Charge	15.0 nC
Drain to Source Voltage (Vds)	20 V
Breakdown Voltage (Drain to Source)	20 V
Breakdown Voltage (Gate to Source)	±12.0 V
Continuous Drain Current (Ids)	5.10 A
Rise Time	12 ns
Input Capacitance (Ciss)	750pF @10V(Vds)
Input Power (Max)	500 mW
Fall Time	20 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	500mW (Ta)
	Show
Size-Length	3.1 mm
Size-Width	1.7 mm
Size-Height	1 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99
