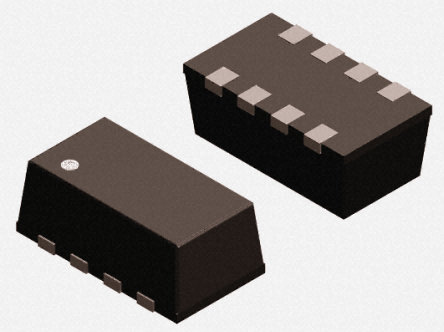

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The NTHD3100CT1G is a N/P-channel Complementary MOSFET ideal for portable battery powered products. The device is designed for DC-to DC conversion circuits, load switch applications requiring level shift and drive small brushless DC motor applications.
- Small size
- 40% Smaller then TSOP-6 package
- Trench P-channel for low ON-resistance
- Low gate charge N-channel for test switching
NTHD3100CT1G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SMD-8 |
| Voltage Rating (DC) | 20.0 V |
| Current Rating | 2.90 A |
| Number of Channels | 2 Channel |
| Number of Positions | 8 Position |
| Drain to Source Resistance (on) (Rds) | 0.064 Ω |
| Polarity | N-Channel, P-Channel |
| Power Dissipation | 1.1 W |
| Threshold Voltage | 1.5 V |
| Drain to Source Voltage (Vds) | 20 V |
| Continuous Drain Current (Ids) | 3.90 A |
| Input Capacitance (Ciss) | 165pF @10V(Vds) |
| Input Power (Max) | 1.1 W |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 3.1 W |
| Show | |
| Size-Length | 3.05 mm |
| Size-Width | 1.65 mm |
| Size-Height | 1.05 mm |
| Material | Silicon |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
