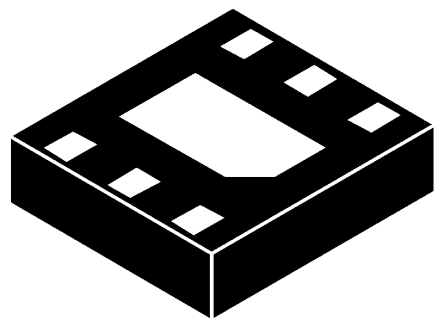

- N-Channel 30V 3.6A (Ta) 700mW (Ta) Surface Mount 6-WDFN (2x2)
NTLJS4114NT1G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | WDFN-6 |
| Halogen Free Status | Halogen Free |
| Number of Channels | 1 Channel |
| Number of Positions | 6 Position |
| Drain to Source Resistance (on) (Rds) | 0.0203 Ω |
| Polarity | N-Channel |
| Power Dissipation | 3.3 W |
| Threshold Voltage | 550 mV |
| Drain to Source Voltage (Vds) | 30 V |
| Breakdown Voltage (Drain to Source) | 30 V |
| Breakdown Voltage (Gate to Source) | ±12.0 V |
| Continuous Drain Current (Ids) | 7.80 A |
| Rise Time | 9 ns |
| Input Capacitance (Ciss) | 650pF @15V(Vds) |
| Input Power (Max) | 700 mW |
| Fall Time | 4 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 700mW (Ta) |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 2 mm |
| Size-Height | 0.75 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2016/06/20 |
| ECCN Code | EAR99 |
