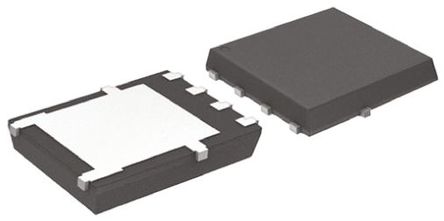

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- N-Channel 30V 8.6A (Ta), 59A (Tc) 870mW (Ta), 41.7W (Tc) Surface Mount 5-DFN (5x6) (8-SOFL)
NTMFS4841NHT1G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | SO-FL-8 |
| Number of Positions | 5 Position |
| Drain to Source Resistance (on) (Rds) | 4.8 mΩ |
| Polarity | N-Channel |
| Power Dissipation | 41.7 W |
| Threshold Voltage | 2.1 V |
| Input Capacitance | 1565 pF |
| Drain to Source Voltage (Vds) | 30 V |
| Continuous Drain Current (Ids) | 59.0 A, 13.5 A |
| Rise Time | 20.6 ns |
| Input Capacitance (Ciss) | 2113pF @12V(Vds) |
| Input Power (Max) | 870 mW |
| Fall Time | 2.9 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 870mW (Ta), 41.7W (Tc) |
| Show | |
| Size-Length | 5.1 mm |
| Size-Width | 6.1 mm |
| Size-Height | 1.1 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
