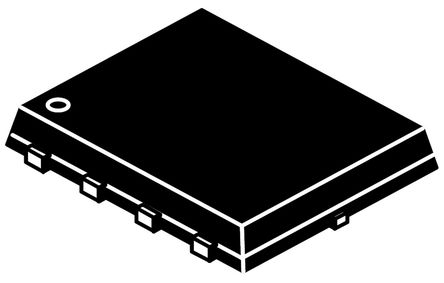

Image is for your reference only,please check specifications for details

NTMFS4C05NT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC4196007
Category:
MOSFET, MOSFET Transistor
Package:
SO-FL-8
Datasheet:
Datasheet 3D Model
Description:
Power MOSFET 30V 78A 3.4mOhm Single N-Channel SO-8FL, DFN5 5X6, 1.27P (SO 8FL), 1500-REEL
Stock Locations:
Availability:
6,601 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.61

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

N-Channel 30V 11.9A (Ta) 770mW (Ta), 33W (Tc) Surface Mount 5-DFN (5x6) (8-SOFL)

Show

NTMFS4C05NT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SO-FL-8
Number of Channels	1 Channel
Number of Positions	5 Position
Drain to Source Resistance (on) (Rds)	0.0027 Ω
Polarity	N-Channel
Power Dissipation	33 W
Threshold Voltage	2.2 V
Drain to Source Voltage (Vds)	30 V
Breakdown Voltage (Drain to Source)	30 V
Rise Time	32 ns
Output Power	38.5 W
Input Capacitance (Ciss)	1972pF @15V(Vds)
Input Power (Max)	770 mW
Fall Time	7 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	770mW (Ta), 33W (Tc)
Supply Voltage	30 V
	Show
Size-Length	6.1 mm
Size-Width	5.1 mm
Size-Height	1.05 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
