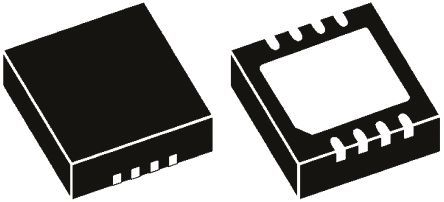

Image is for your reference only,please check specifications for details

NUS5530MNR2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC59913511
Category:
BJT Transistor, BJT
Package:
DFN-8
Datasheet:
Datasheet 3D Model
Description:
NUS5530MN: Integrated Power MOSFET 20V 3.9A 60mOhm Dual P-Channel with PNP Low VCE Switching Transistor DFN8
Stock Locations:
Availability:
10,446 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.07

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**Bipolar PNP & MOSFET Transistor, ON Semiconductor**
A combined Low Saturation PNP Bipolar Transistor and P-channel MOSFET in a compact iintegrated SMT package

Show

NUS5530MNR2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	DFN-8
Halogen Free Status	Halogen Free
Drain to Source Resistance (on) (Rds)	200 Ω
Polarity	P-Channel
Power Dissipation	635 mW
Breakdown Voltage (Drain to Source)	20 V
Continuous Drain Current (Ids)	-2.00 A
hFE Min	100
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2.5 W
Voltage Rating	35 V
	Show
Size-Length	3.3 mm
Size-Width	3.3 mm
Size-Height	0.95 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
