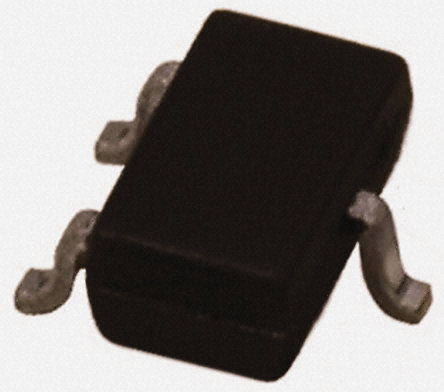

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The NTS2101PT1G is a P-channel Power MOSFET offers -8V drain source voltage and -1.4A continuous drain current. It is suitable for high side load switch, charging circuit, single cell battery applications such as cell phones, digital cameras and PDAs.
- Leading Trench technology for low RDS (ON) extending battery life
- -1.8V Rated for low voltage gate drive
- Surface-mount for small footprint (2 x 2mm)
- -55 to 150°C Operating junction temperature range
NTS2101PT1G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-323-3 |
| Voltage Rating (DC) | -8.00 V |
| Current Rating | -1.40 A |
| Number of Channels | 1 Channel |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 0.1 Ω |
| Polarity | P-Channel |
| Power Dissipation | 290 mW |
| Threshold Voltage | 700 mV |
| Drain to Source Voltage (Vds) | 8 V |
| Breakdown Voltage (Drain to Source) | 8 V |
| Breakdown Voltage (Gate to Source) | ±8.00 V |
| Continuous Drain Current (Ids) | 1.40 A |
| Rise Time | 15 ns |
| Input Capacitance (Ciss) | 640pF @8V(Vds) |
| Input Power (Max) | 290 mW |
| Fall Time | 18 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 290mW (Ta) |
| Show | |
| Size-Length | 2.2 mm |
| Size-Width | 1.24 mm |
| Size-Height | 0.9 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2016/06/20 |
| ECCN Code | EAR99 |
