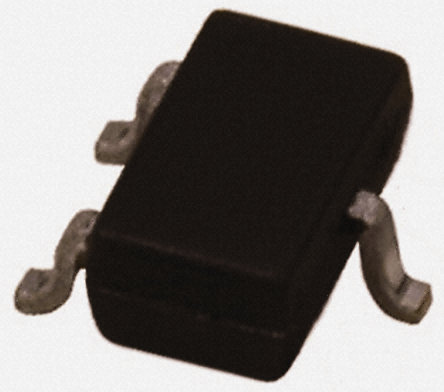

NTS4409NT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC2058812
Category:
MOSFET, MOSFET Transistor
Package:
SC-70-3
Datasheet:
Datasheet 3D Model
Description:
Small Signal MOSFET 25V 750mA 350mOhm Single N-Channel SC-70 with ESD Protection, SC-70 (SOT-323) 3 LEAD, 3000-REEL
Stock Locations:
Availability:
3,108 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.29

Updated at 03/12/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

NTS4409NT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SC-70-3
Voltage Rating (DC)	25.0 V
Current Rating	700 mA
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.35 Ω
Polarity	N-Channel
Power Dissipation	330 mW
Threshold Voltage	650 mV
Input Capacitance	60.0 pF
Gate Charge	1.50 nC
Drain to Source Voltage (Vds)	25 V
Breakdown Voltage (Drain to Source)	25.0 V
Breakdown Voltage (Gate to Source)	±8.00 V
Continuous Drain Current (Ids)	750 mA
Rise Time	8.2 ns
Input Capacitance (Ciss)	60pF @10V(Vds)
Input Power (Max)	280 mW
Fall Time	41 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	330 mW
	Show
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	0.9 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99
