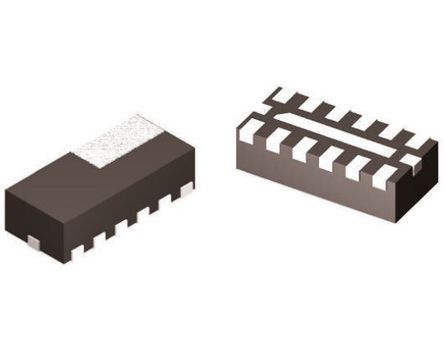

Image is for your reference only,please check specifications for details

NUF6401MNT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC16383318
Category:
RFI Shielding
Package:
DFN-12
Datasheet:
Datasheet 3D Model
Description:
EMI Filter 6Channel 800MHz to 3000MHz >30dB Flat Style SMD Automotive T/R
Stock Locations:
Availability:
10,735 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.37

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This Device is a 6 Line EMI Filter array for wireless applications. Greater than -30 dB attenuation is obtained at frequencies from 800 MHz to 3.0 GHz. It also offers ESD protection, clamping transients from static discharges. ESD protection is provided across all capacitors.
Features
---
|
EMI Filtering and ESD Protection
AECQ101 Qualified and PPAP Capable SNUF6401
ESD Ratings: IEC61000-4-2 (Level 4), Machine Model = C, Human Body Model = 3 B
DFN Package, 1.35 x 3.0 mm
Moisture Sensitivity Level 1
ESD Ratings: Machine Model = C and Human Body Model = 3B
This is a Pb-Free Device
Integration of 30 Discrete Components

Show

NUF6401MNT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	12 Pin
Case/Package	DFN-12
Halogen Free Status	Halogen Free
Number of Channels	6 Channel
Number of Positions	12 Position
Shielding	No
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	3 mm
Size-Height	1 mm
Operating Temperature	-45℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
