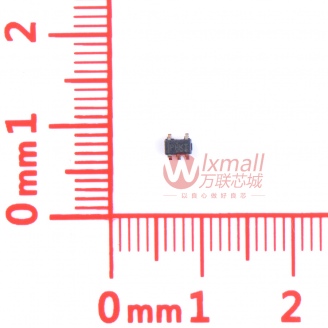

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The TPS6220x devices are a family of high-efficiency synchronous step-down converters ideally suited for
- portable systems powered by 1-cell Li-Ion or 3-cell NiMH/NiCd batteries. The devices are also suitable to
- operate from a standard 3.3-V or 5-V voltage rail.
- FEATURES
- • High Efficiency Synchronous Step-Down Converter With up to 95% Efficiency
- • 2.5 V to 6.0 V Input Voltage Range
- • Adjustable Output Voltage Range From 0.7 V to VI
- • Fixed Output Voltage Options Available
- • Up to 300 mA Output Current
- • 1 MHz Fixed Frequency PWM Operation
- • Highest Efficiency Over Wide Load Current Range Due to Power Save Mode
- • 15-µA Typical Quiescent Current
- • Soft Start
- • 100% Duty Cycle Low-Dropout Operation
- • Dynamic Output-Voltage Positioning
- • Available in a Tiny 5-Pin SOT23 Package
- APPLICATIONS
- • PDAs and Pocket PC
- • Cellular Phones, Smart Phones
- • Low Power DSP Supply
- • Digital Cameras
- • Portable Media Players
- • Portable Equipment
TPS62200DBV Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 5 Pin |
| Case/Package | SOT-23-5 |
| Quiescent Current | 15.0 µA |
| Topology | Buck |
| Show | |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
