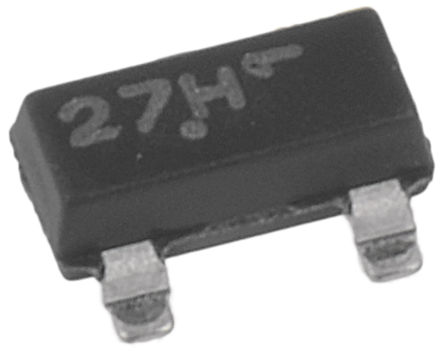

NUP1105LT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC4852378
Category:
TVS Diode
Package:
SOT-23-3
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NUP1105LT1G ESD Protection Device, TVS, 40V, SOT-23, 3Pins, 24V, 350W
Stock Locations:
Availability:
9,266 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.19

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**Single Line CAN/LIN Bus Protector, ON Semiconductor**
The NUP1105L protects LIN and single line CAN transceivers from ESD and other harmful transient voltage events.

Show

NUP1105LT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Operating Voltage	24 V
Capacitance	60 pF
Halogen Free Status	Halogen Free
Breakdown Voltage	25.7 V
Number of Positions	3 Position
Power Dissipation	350 W
Clamping Voltage	44 V
Test Current	1 mA
Max Breakdown Voltage	28.4 V
Peak Pulse Power	350 W
Min Breakdown Voltage	25.7 V
Reverse Breakdown Voltage	25.7 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	3.04 mm
Size-Width	1.40 mm
Size-Height	0.94 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
