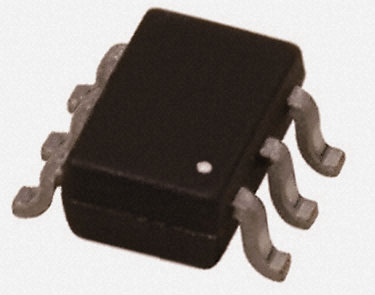

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NUP4301MR6T1G is a low capacitance TVS Diode Array for ESD protection in four data lines. It is a micro-integrated device designed to provide protection for sensitive components from possible harmful electrical transients.
Low capacitance (1.5pf maximum between I/O lines)
Provides ESD protection for JEDEC standards JESD22
Protection for IEC61000-4-2 (level 4) 8.0kV (Contact) 15kV (Air)
Ensures data line speed and integrity
Fewer components and less board space
Direct the transient to either positive side or to the ground
-40 to 85°C Junction temperature range

Show

NUP4301MR6T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SC-74-6
Voltage Rating (DC)	70.0 V
Operating Voltage	1.25 V
Capacitance	3 pF
Power Rating	500 W
Halogen Free Status	Halogen Free
Breakdown Voltage	70.0 V
Number of Positions	6 Position
Max Breakdown Voltage	70 V
Min Breakdown Voltage	70 V
Reverse Breakdown Voltage	70 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	3 mm
Size-Width	1.5 mm
Size-Height	0.94 mm
Operating Temperature	-40℃ ~ 85℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
