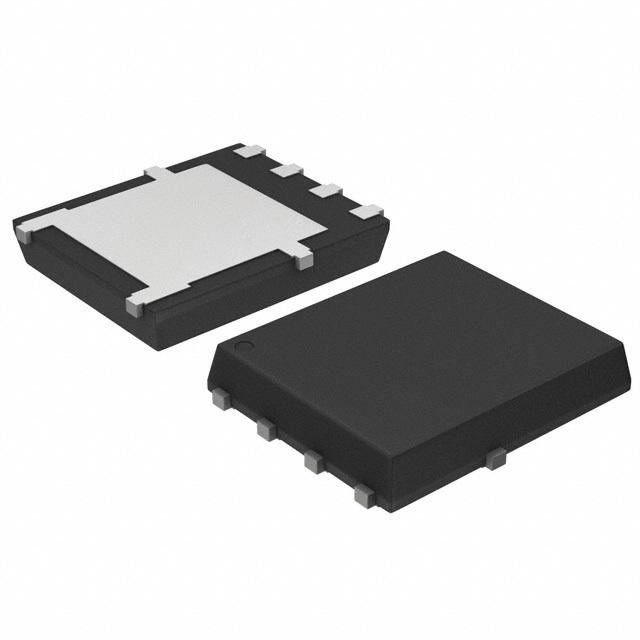

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* Small Footprint (5x6 mm) * Low RDS(on) * Low QG and Capacitance * Wettable Flank Option * AEC−Q101 Qualified * Pb−Free

Show

NVMFS5C404NLWFT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SO-FL-8
Polarity	N-CH
Power Dissipation	3.9 W
Drain to Source Voltage (Vds)	40 V
Continuous Drain Current (Ids)	49A
Rise Time	135 ns
Input Capacitance (Ciss)	12168pF @25V(Vds)
Fall Time	157 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	3.9W (Ta), 200W (Tc)
	Show
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
