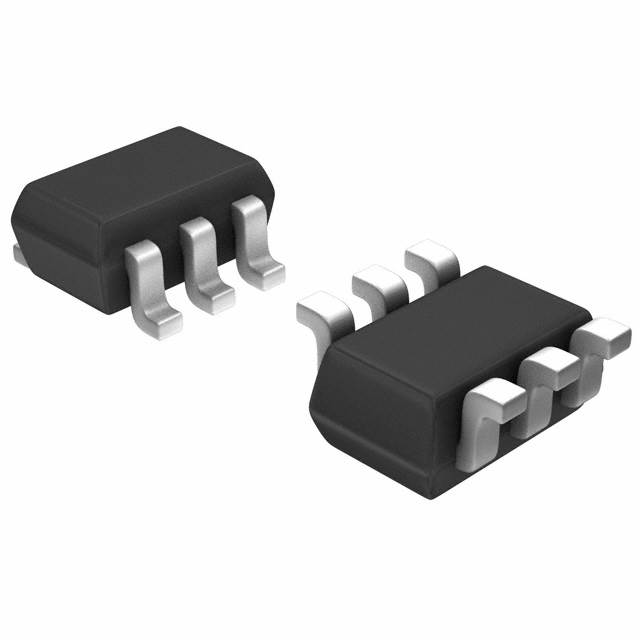

Image is for your reference only,please check specifications for details

Updated at 18/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

NX7002BKS Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-363
Number of Positions	6 Position
Drain to Source Resistance (on) (Rds)	2.2 Ω
Polarity	Dual N-Channel
Power Dissipation	285 mW
Threshold Voltage	1.6 V
Drain to Source Voltage (Vds)	60 V
Continuous Drain Current (Ids)	330A
Input Capacitance (Ciss)	23.6pF @10V(Vds)
Input Power (Max)	320 mW
Operating Temperature (Max)	150 ℃
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
