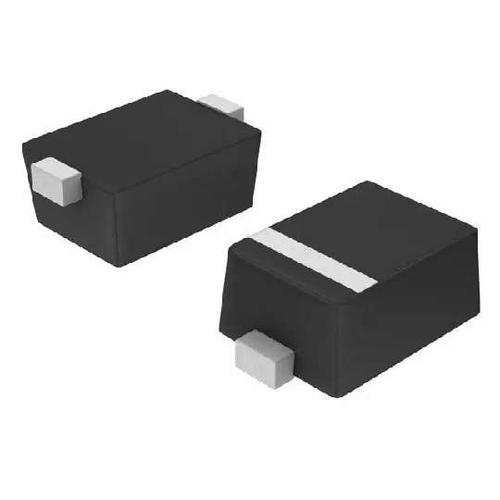

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Zener Diode 20V 200mW ±5% Surface Mount SOD-923
NZ9F20VT5G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | SOD-923-2 |
| Capacitance Tolerance | ±5 % |
| Forward Voltage | 900mV @10mA |
| Power Dissipation | 200 mW |
| Test Current | 5 mA |
| Zener Voltage | 20 V |
| Maximum Forward Voltage (Max) | 900mV @10mA |
| Input Power (Max) | 200 mW |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Show | |
| Size-Length | 0.8 mm |
| Size-Width | 0.6 mm |
| Size-Height | 0.37 mm |
| Operating Temperature | -65℃ ~ 150℃ |
| Temperature Coefficient | 16.2 mV/K |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
