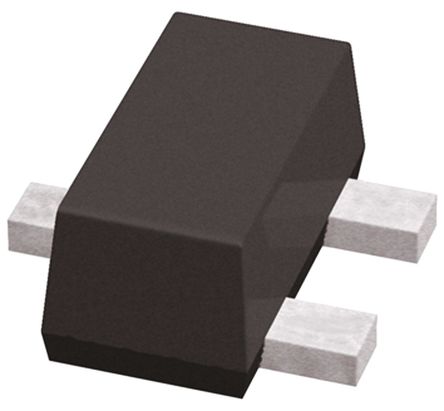

Image is for your reference only,please check specifications for details

NZL5V6AXV3T1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC3978163
Category:
TVS Diode
Package:
SC-89-3
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NZL5V6AXV3T1G TVS Diode, NZL5V6AXV3T1 Series, Unidirectional, 3V, 10.1V, SC-89, 3Pins
Stock Locations:
Availability:
127 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.25

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Never worry about unexpected ESD again from implementing this tvs NZL5V6AXV3T1G ESD protection device manufactured from ON Semiconductor. This ESD diode has a maximum ESD protection device voltage of 10@Contact Disc kV. This device"s maximum clamping voltage is 10.1 V. This ESD diode has an operating temperature range of -55 °C to 150 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It is made in a dual common anode|single configuration.

Show

NZL5V6AXV3T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SC-89-3
Voltage Rating (DC)	5.60 V
Operating Voltage	3 V
Capacitance	45 pF
Power Rating	240 mW
Halogen Free Status	Halogen Free
Breakdown Voltage	5.32 V
Number of Channels	2 Channel
Number of Positions	3 Position
Power Dissipation	240 mW
Clamping Voltage	10.1 V
Test Current	5 mA
Max Breakdown Voltage	5.88 V
Zener Voltage	5.6 V
Peak Pulse Power	50 W
Min Breakdown Voltage	5.32 V
Reverse Breakdown Voltage	5.32 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	-55℃ ~ 150℃
Power Dissipation (Max)	240 mW
	Show
Size-Length	1.6 mm
Size-Width	0.95 mm
Size-Height	0.8 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
