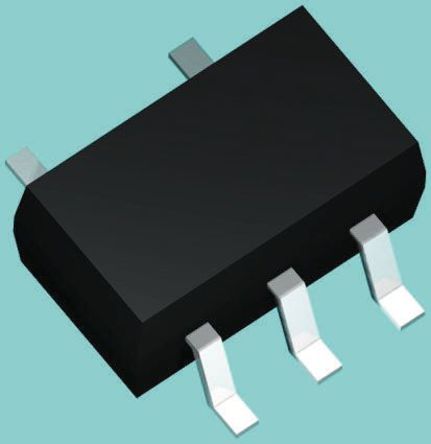

NZQA5V6XV5T1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC6331314
Category:
TVS Diode
Package:
SOT-553-5
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NZQA5V6XV5T1G TVS Diode, NZQA Series, Unidirectional, 3V, 10.5V, SOT-553, 5Pins
Stock Locations:
Availability:
260 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.15

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

NZQA5V6XV5T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-553-5
Voltage Rating (DC)	5.60 V
Operating Voltage	5.6 V
Capacitance	90 pF
Power Rating	100 W
Halogen Free Status	Halogen Free
Breakdown Voltage	5.6 V
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	5 Position
Power Dissipation	100 W
Clamping Voltage	10.5 V
Test Current	1 mA
Max Breakdown Voltage	5.88 V
Peak Pulse Power	100 W
Min Breakdown Voltage	5.32 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	-55℃ ~ 150℃
Power Dissipation (Max)	300 mW
	Show
Size-Length	1.7 mm
Size-Width	1.3 mm
Size-Height	0.55 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99
