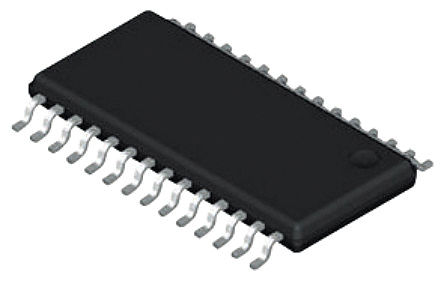

PCM5142PW - TI
Manufacturer:
TI
ManyChip's Part#:
MC16889600
Category:
Digital to Analog, DAC IC
Package:
TSSOP-28
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS PCM5142PW Digital to Analog Converter, 32Bit, 384KSPS, 3V to 3.6V, TSSOP, 28Pins
Stock Locations:
Availability:
287 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.97

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PCM5142PW is a monolithic CMOS stereo Digital-to-analog Converter with additional support circuitry. The PCM514x uses the latest generation of TIs advanced segment-DAC architecture to achieve excellent dynamic performance and improved tolerance to clock jitter. It integrates a fully programmable miniDSP core, allowing developers to integrate filters, dynamic range controls, custom interpolators and other differentiating features. The PCM514x provides 2.1VRMS ground centered outputs, allowing designers to eliminate DC-blocking capacitors on the output, as well as external muting circuits traditionally associated with single-supply line drivers. The integrated line driver surpasses all other charge-pump-based line drivers by supporting loads down to 1kR. The integrated PLL on the device removes the requirement for a system clock, allowing a 3-wire I²S connection and reducing system EMI.
Programmable miniDSP
Market-leading low out-of-band noise
Selectable digital-filter latency and performance
No DC blocking capacitors required
Integrated negative charge pump
Software or hardware configuration
Automatic power-save mode when LRCK and BCK are deactivated
Green product and no Sb/Br

Show

PCM5142PW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	TSSOP-28
Number of Outputs	2 Output
Output Voltage	2.1 V
Number of Channels	2 Channel
Number of Positions	28 Position
Number of Bits	32 Bit
Power Dissipation	0.155 W
Sample Rate	384 ksps
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Power Dissipation (Max)	155 mW
Number of DACs	2 DAC
Supply Voltage	3V ~ 3.6V
	Show
Size-Length	9.8 mm
Size-Width	4.5 mm
Size-Height	1.05 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
