NZQA6V8AXV5T1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC4834324
Category:
TVS Diode
Package:
SOT-553-5
Datasheet:
Datasheet 3D Model
Description:

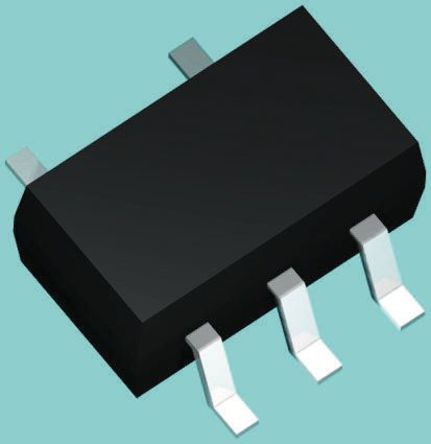

ON SEMICONDUCTOR NZQA6V8AXV5T1G TVS Diode, Unidirectional, 4.3V, 13V, SOT-553, 5Pins
Stock Locations:
Availability:
76 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.18

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Features • Transient Voltage Suppressors ESD Protection Diode with Low Clamping Voltage • Small SOT−553 SMT Package • Stand Off Voltage: 3 V • Low Leakage Current • Four Separate Unidirectional Configurations for Protection • ESD Protection: IEC61000−4−2: Level 4 ESD Protection MILSTD 883C − Method 3015−6: Class 3 • Complies to USB 1.1 Low Speed & Full Speed Specifications • These are Pb−Free Devices

Show

NZQA6V8AXV5T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-553-5
Voltage Rating (DC)	6.20 V
Operating Voltage	4.3 V
Capacitance	15 pF
Power Rating	100 W
Halogen Free Status	Halogen Free
Breakdown Voltage	6.8 V
Number of Positions	5 Position
Power Dissipation	380 mW
Clamping Voltage	13 V
Test Current	1 mA
Max Breakdown Voltage	7.14 V
Peak Pulse Power	20 W
Min Breakdown Voltage	6.47 V
Reverse Breakdown Voltage	6.1 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	1.7 mm
Size-Width	1.3 mm
Size-Height	0.6 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
