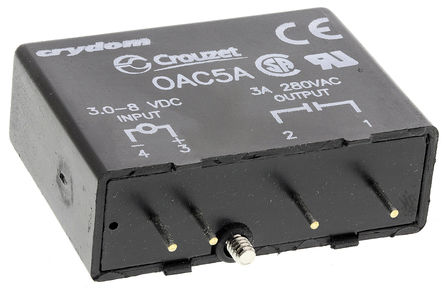

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **Features:**
- * Industry Standard Package
- * Color-Coded Housing for Input or Output; AC or DC
- * Captive Screw Retaining System
- * UL Recognized, CSA Certified, CE Compliant
- * Dimensions (L × W × H): 1.7" × 0.6" × 1.25"
OAC5A Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Plug In |
| Supply Voltage (DC) | 3.00 V, 8.00 V (max) |
| Voltage Rating (DC) | 5.00 V |
| Operating Voltage | 5 VDC |
| Current Rating | 20 A |
| Insulation Resistance | ≥100MΩ @500VDC |
| Number of Outputs | 1 Output |
| Output Voltage | 24VAC ~ 280VAC |
| Output Current | 3.5 A |
| Contacts Type | SPST-NO |
| Number of Channels | 1 Channel |
| Load Current | 4.50 mA |
| Input Current | 20 mA |
| Isolation Voltage | 4000 V |
| Coil Voltage | 5 VDC |
| Input Voltage (Max) | 8 VDC |
| Input Voltage (Min) | 2.75 VDC |
| Input Current (Min) | 20 mA |
| Number of Analogue Outputs | 1 Output |
| Load Current (Max) | 3.5 A |
| Operating Temperature (Max) | 80 ℃ |
| Operating Temperature (Min) | -30 ℃ |
| Supply Voltage | 5 VDC |
| Input Voltage | 5 VDC |
| Show | |
| Size-Length | 43.2 mm |
| Size-Width | 15.2 mm |
| Size-Height | 31.7 mm |
| Color | Black |
| Operating Temperature | -30℃ ~ 80℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536490080 |
| ECCN Code | EAR99 |
