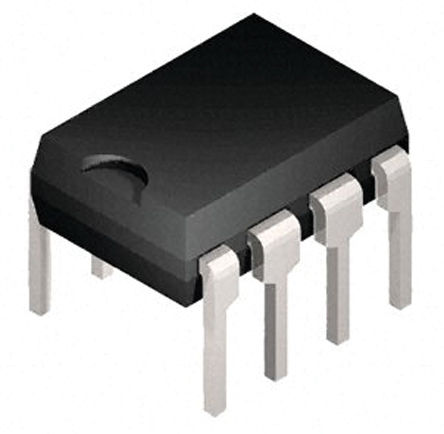

Image is for your reference only,please check specifications for details

OP07CP - TI
Manufacturer:
TI
ManyChip's Part#:
MC16152
Category:
Operational Amplifier, OP Amp IC
Package:
PDIP-8
Datasheet:
Datasheet 3D Model
Description:
Operational Amplifier, Single, 1 Amplifier, 600kHz, 0.3V/µs, ± 3V to ± 18V, DIP, 8Pins
Stock Locations:
Availability:
10,817 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.6

Updated at 29/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

These devices offer low offset and long-term stability by means of a low-noise, chopper less, bipolar-input-transistor amplifier circuit. For most applications, external components are not required for offset nulling and frequency compensation. The true differential input, with a wide input-voltage range and outstanding common-mode rejection, provides maximum flexibility and performance in high-noise environments and in non-inverting applications. Low bias currents and extremely high input impedances are maintained over the entire temperature range. The OP07 is unsurpassed for low-noise, high-accuracy amplification of very-low-level signals.
Low noise
No external components required
Replace chopper amplifiers at a lower cost
Wide input-voltage range
Wide supply-voltage range

Show

OP07CP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Supply Voltage (DC)	15.0 V
Operating Voltage	3V ~ 18V
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	0.5 W
Common Mode Rejection Ratio	100 dB
Input Offset Drift	500 nV/K
Bandwidth	600 kHz
Slew Rate	300 mV/μs
Gain Bandwidth Product	600 kHz
Input Offset Voltage	60 µV
Input Bias Current	1.8 nA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Gain Bandwidth	0.6 MHz
Power Dissipation (Max)	150 mW
Minimum CMRR Range	100 dB
Supply Voltage	6V ~ 36V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	6 V
	Show
Size-Length	9.81 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Obsolete
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
