Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 8 Pin |

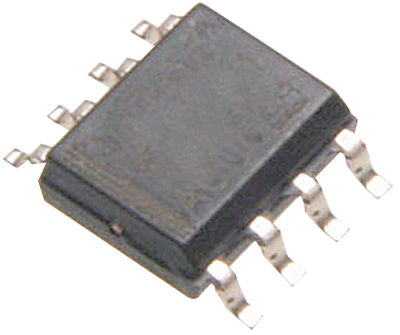

Case/Package | SOIC-8 |
Supply Voltage (DC) | 12.0 V |
Output Current | 60 mA |
Supply Current | 3.75 mA |
Number of Circuits | 2 Circuit |
Number of Channels | 2 Channel |
Number of Positions | 8 Position |
Common Mode Rejection Ratio | 56 dB |
Bandwidth | 5 MHz |
Slew Rate | 3.00 V/μs |
Gain Bandwidth Product | 5 MHz |
Input Impedance | 1.25 MΩ |
Input Offset Voltage | 4 mV |
Input Bias Current | 300 nA |
Operating Temperature (Max) | 85 ℃ |
Operating Temperature (Min) | -40 ℃ |
Gain Bandwidth | 5 MHz |
Minimum CMRR Range | 56 dB |
Supply Voltage | 4.5V ~ 12V |
Supply Voltage (Max) | 12 V |
Supply Voltage (Min) | 4.5 V |
Show | |
Size-Length | 5 mm |
Size-Width | 4 mm |
Size-Height | 1.5 mm |
Operating Temperature | -40℃ ~ 85℃ |
Product Lifecycle Status | Active |
Packaging | Tube |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
Mil-Spec | No |
REACH SVHC Compliance Edition | 2015/12/17 |
