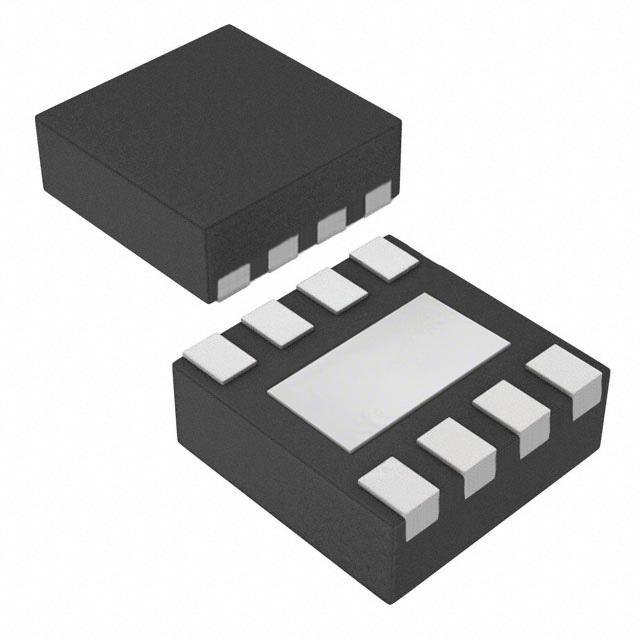

Image is for your reference only,please check specifications for details

OPA1612AIDRGT - TI
Manufacturer:
TI
ManyChip's Part#:
MC2640696
Category:
Operational Amplifier, OP Amp IC
Package:
SON-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS OPA1612AIDRGT Operational Amplifier, Dual, 2 Amplifier, 27V/µs, ± 2.25V to ± 18V, 4.5V to 36V, SON, 8Pins
Stock Locations:
Availability:
295 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.45

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA1611 (single) and OPA1612 (dual) bipolar-input operational amplifiers achieve very low 1.1-nV/√Hz noise density with an ultralow distortion of 0.000015% at 1 kHz. The OPA1611 and OPA1612 offer rail-to-rail output swing to within 600 mV with a 2-kΩ load, which increases headroom and maximizes dynamic range. These devices also have a high output drive capability of ±30 mA.
These devices operate over a very wide supply range of ±2.25 V to ±18 V, on only 3.6 mA of supply current per channel. The OPA1611 and OPA1612 op amps are unity-gain stable and provide excellent dynamic behavior over a wide range of load conditions.
The dual version features completely independent circuitry for lowest crosstalk and freedom from interactions between channels, even when overdriven or overloaded.
Both the OPA1611 and OPA1612 are available in SOIC-8 packages and the OPA1612 is available in SON-8. These devices are specified from –40°C to +85°C.

Show

OPA1612AIDRGT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SON-8
Output Current	30 mA
Supply Current	3.6 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	110 dB
Input Offset Drift	1.00 µV/K
Bandwidth	40.0 MHz
Slew Rate	27.0 V/μs
Gain Bandwidth Product	80 MHz
Input Offset Voltage	0.5 mV
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Minimum CMRR Range	110 dB
Supply Voltage (Max)	36 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	0.8 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
