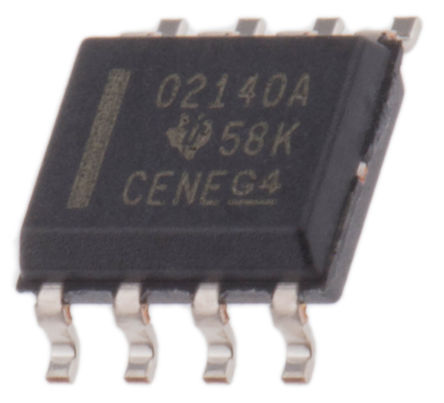

Image is for your reference only,please check specifications for details
- OPA2140AID - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC2217700
-
Category:Operational Amplifier, OP Amp IC
-
Package:SOIC-8
-
Datasheet:Datasheet 3D Model
-
Description:Operational Amplifier, Dual, 2 Amplifier, 11MHz, 20V/µs, 4.5V to 36V, SOIC, 8Pins
-
Stock Locations:
-
Availability:279 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 5.62
Updated at 25/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The OPA2140AID is a precision low noise JFET Operational Amplifier that features good drift and low input bias current. The rail-to-rail output swing and input range that includes V- allow designers to take advantage of the low-noise characteristics of JFET amplifier while also interfacing to modern, single-supply, precision analogue-to-digital converters (ADCs) and digital-to-analogue converters (DACs). The OPA140 achieves 11MHz unity-gain bandwidth and 20V/µs slew rate while consuming only 1.8mA (typical) of quiescent current. It runs on a single 4.5 to 36V supply or dual ±2.25 to ±18V supplies.
- 5.1nV/√Hz Low noise
- No phase reversal
- 1µV/°C Maximum very low offset drift
- 12µV Very low offset
- 10pA Maximum low input bias current
- Green product and no Sb/Br
- ESD sensitive device, take proper precaution while handling the device.
OPA2140AID Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Supply Current | 1.8 mA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 8 Position |
| Common Mode Rejection Ratio | 126 dB |
| Input Offset Drift | 350 nV/K |
| Bandwidth | 11 MHz |
| Slew Rate | 20.0 V/μs |
| Gain Bandwidth Product | 11 MHz |
| Input Offset Voltage | 30 µV |
| Input Bias Current | 0.5 pA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 11 MHz |
| Minimum CMRR Range | 126 dB |
| Supply Voltage | 4.5V ~ 36V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 4 mm |
| Size-Height | 1.5 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
