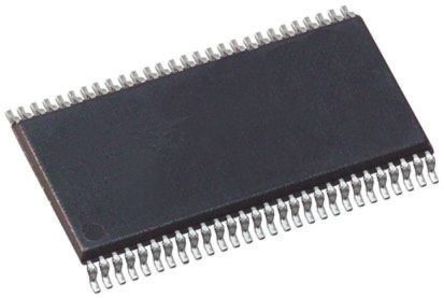

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The SN75LVDS82DGG is a FlatLink™ Receiver contains four serial-in, 7-bit parallel-out shift registers, a 7x clock synthesizer and five low-voltage differential signalling (LVDS) line receivers in a single integrated circuit. These functions allow receipt of synchronous data from a compatible transmitter, such as the SN75LVDS81, over five balanced-pair conductors and expansion to 28-bit of single-ended low-voltage TTL (LVTTL) synchronous data at a lower transfer rate. The SN75LVDS82 can also be used with the SN75LVDS84 or SN75LVDS85 for 21-bit transfers. When receiving, the high-speed LVDS data is received and loaded into registers at the rate of seven times (7x) the LVDS input clock (CLKIN). The data is then unloaded to a 28-bit wide LVTTL parallel bus at the CLKIN rate. A phase-locked loop (PLL) clock synthesizer circuit generates a 7x clock for internal clocking and an output clock for the expanded data. It presents valid data on the falling edge of the output clock (CLKOUT).
- 4:28 Data channel expansion at up to 238Mbps throughput
- Suited for SVGA, XGA or SXGA display data transmission from controller to display with very low EMI
- 4 Data channels & clock low-voltage diff channels in & 28 data & clock low-voltage TTL channels out
- Operates from a single 3.3V supply with 250mW
- 5V Tolerant SHTDN(bar) input
- Falling clock-edge-triggered outputs
- Consumes less than 1mW when disabled
- No external components required for PLL
- Inputs meet or exceed the requirements of ANSI EIA/TIA-644 standard
- Improved replacement for the National™ DS90C582
SN75LVDS82DGG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 56 Pin |
| Case/Package | TSSOP-56 |
| Supply Voltage (DC) | 3.00V (min) |
| Power Dissipation | 1377 mW |
| Input Current (Min) | 20 μA |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 1377 mW |
| Supply Voltage | 3V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Size-Length | 14 mm |
| Size-Width | 6.1 mm |
| Size-Height | 1.15 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
